Tube Guide

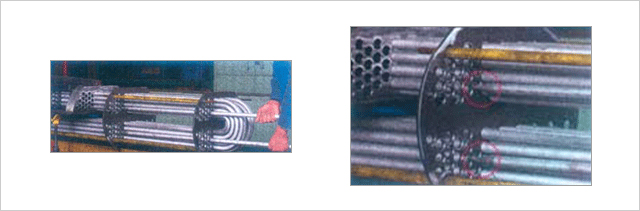

Tube guide has tapered aluminum pilot with a replaceable nylon brush used to guide tubes through tube sheets and support plate holes. Speeds the assembly operation and prebents tube end damage during assembly. The nylon brush fits in the tube end, holding pilot firmly in place. Brush also cletibe where it will be rolled. Pilot is easily removed by a slight twist.

min(in.)

No. Tube
O.D

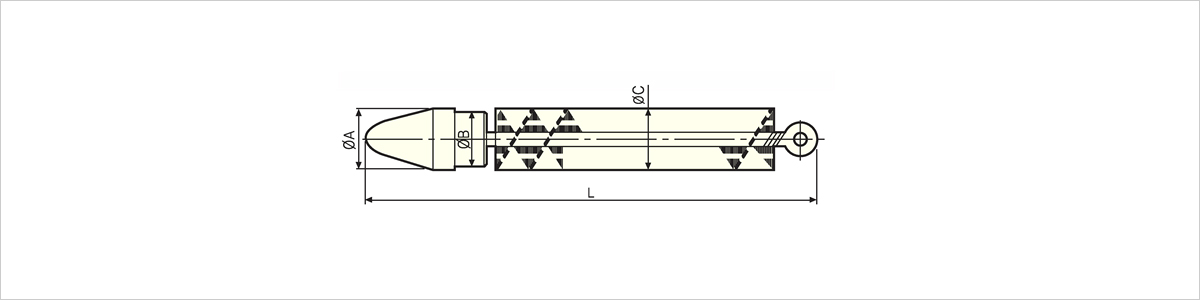

Thickness A B C L
m.m B.W.G
1 25.4 0.8 21 25.4 23.7 25 205
2 1.24 18 22.4 25
3 1.65 16 21.7 24
4 2.11 14 20.9 24
5 22.2 0.8 21 22.2 19.1 22 205
6 1.24 18 19.5 22
7 1.65 16 18.7 21
8 2.11 14 17.8 21
9 19.1 0.8 21 19.1 17.1 20 205
10 1.24 18 16.1 20
11 1.65 16 15.3 18
12 2.11 14 12.7 18
13 15.9 0.6 23 15.9 14.2 16 200
14 0.8 21 13.9 16
15 1.24 18 13.0 16
16 1.65 16 12.3 15
17 2.11 14 11.9 14
