확관장비·확관공구

AS-HB-TYPE





▶ 제품사양

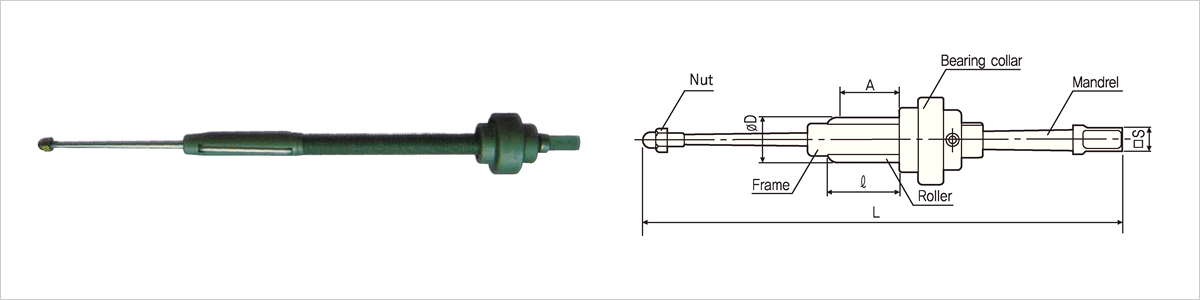

Tool No. Expansion Range D Mandrel
Roller Length ℓ Min.
mm(in.)
Max
38mm
(1-1/2")
57mm
(2-1/4")
76mm
(3")
Roller Length No. Shank
Square S
mm(in.)
Length L
mm(in.)
38mm(1-1/2")
mm(in.)
57mm(2-1/4")
mm(in.)
76mm(3")
mm(in.)
HB-101 - - 9.2(0.362) 10.9(0.429) - - AH-1
HB-103 - - 10.0(0.394) 11.7(0.461) - - AH-2 9.5(3/8) 336(13.3)
HB-105 - - 10.8(0.425) 12.5(0.492) - -
HB-107 HB-207 - 11.6(0.457) 13.5(0.531) 13.2(0.520) - AH-4 9.5(3/8) 336(13.3)
HB-109 HB-209 - 12.4(0.488) 14.3(0.563) 14.0(0.551) -
HB-111 HB-211 - 13.2(0.520) 15.1(0.594) 14.8(0.583) -
HB-113 HB-213 HB-313 14.0(0.551) 16.2(0.638) 15.8(0.622) 15.4(0.606) AH-6 9.5(3/8) 336(13.3)
HB-115 HB-215 HB-315 14.8(0.583) 17.0(0.669) 16.6(0.654) 16.2(0.638)
HB-117 HB-217 HB-317 15.6(0.614) 17.8(0.701) 17.4(0.685) 17.0(0.669)
HB-119 HB-219 HB-319 16.4(0.646) 18.9(0.744) 18.4(0.724) 18.0(0.709) AH-8 9.5(3/8) 340(13.4)
HB-121 HB-221 HB-321 17.1(0.673) 19.7(0.776) 19.2(0.756) 18.8(0.740)
HB-123 HB-223 HB-323 17.9(0.705) 20.5(0.807) 20.0(0.787) 19.6(0.771)
HB-125 HB-225 HB-325 18.7(0.736) 21.5(0.846) 21.1(0.831) 20.6(0.811) AH-10 9.5(3/8) 340(13.4)
HB-127 HB-227 HB-327 19.5(0.768) 22.3(0.878) 21.9(0.862) 21.4(0.843)
HB-129 HB-229 HB-329 20.3(0.799) 23.1(0.909) 22.6(0.890) 22.1(0.870)
HB-131 HB-231 HB-331 21.3(0.831) 23.9(0.941) 23.4(0.921) 22.9(0.902)
HB-132 HB-232 HB-332 21.5(0.846) 25.0(0.984) 24.4(0.961) 23.8(0.937) AH-11 12.7(1/2) 350(13.8)
HB-134 HB-234 HB-334 22.3(0.878) 25.8(1.016) 25.2(0.992) 24.6(0.969)
HB-136 HB-236 HB-336 23.1(0.909) 26.5(1.043) 26.0(1.024) 25.4(1)
HB-138 HB-238 HB-338 23.9(0.941) 27.3(1.075) 26.8(1.055) 26.2(1.031)
HB-140 HB-240 HB-340 24.7(0.972) 28.1(1.106) 27.6(1.087) 27.0(1.063)
HB-142 HB-242 HB-342 25.5(1.004) 29.5(1.161) 28.8(1.134) 28.2(1.110) AH-12 12.7(1/2) 350(13.8)
HB-144 HB-244 HB-344 26.3(1.035) 30.3(1.193) 29.6(1.165) 29.0(1.142)
HB-146 HB-246 HB-346 27.1(1.067) 31.1(1.224) 30.4(1.197) 29.8(1.173)
HB-148 HB-248 HB-348 27.9(1.098) 31.9(1.256) 31.2(1.229) 30.6(1.205)
HB-150 HB-250 HB-350 28.7(1.130) 32.7(1.287) 32.0(1.260) 31.4(1.236)
HB-152 HB-252 HB-352 29.5(1.161) 34.1(1.343) 33.3(1.311) 32.6(1.283) AH-13 12.7(1/2) 355(14.0)
HB-154 HB-254 HB-354 30.3(1.193) 34.9(1.374) 34.1(1.343) 33.4(1.315)
HB-156 HB-256 HB-356 31.1(1.224) 35.7(1.406) 34.9(1.374) 34.2(1.346)
HB-158 HB-258 HB-358 31.9(1.256) 36.5(1.437) 35.7(1.406) 35.0(1.378)
HB-160 HB-260 HB-360 32.6(1.283) 37.2(1.465) 36.5(1.437) 35.7(1.406)
HB-162 HB-262 HB-362 33.4(1.315) 38.0(1.496) 37.3(1.469) 36.5(1.437)
- HB-264 HB-364 35.1(1.382) - 39.7(1.563) 38.9(1.531) AH-14 19.0(3/4) 388(15.3)
- HB-266 HB-366 36.6(1.441) - 41.3(1.626) 40.5(1.594)
- HB-268 HB-368 38.2(1.504) - 42.9(1.689) 42.1(1.657)
- HB-270 HB-370 40.7(1.602) - 46.1(1.815) 45.3(1.783) AH-15 19.0(3/4) 408(16.1)
- HB-272 HB-372 43.9(1.728) - 49.2(1.937) 48.4(1.906)
- HB-274 HB-374 47.0(1.850) - 52.4(2.063) 51.6(2.031)
- HB-276 HB-376 49.5(1.949) - 55.6(2.189) 54.8(2.157) AH-16 19.0(3/4) 427(1638)
- HB-278 HB-378 52.7(2.075) - 58.8(2.315) 58.0(2.283)
- HB-280 HB-380 55.9(2.201) - 61.9(2.437) 61.1(2.406)
- HB-282 HB-382 58.2(2.291) - 65.1(2.563) 64.3(2.531) AH-17 19.0(3/4) 446(17.6)
- HB-284 HB-384 61.4(2.417) - 68.3(2.689) 67.5(2.657)
- HB-286 HB-386 64.6(2.543) - 71.5(2.815) 70.2(2.783)
- HB-288 HB-388 67.1(2.642) - 75.4(2.969) 74.5(2.933) AH-18 25.4(1) 489(19.3)
- HB-290 HB-390 70.3(2.768) - 78.6(3.094) 77.7(3.059)
- HB-292 HB-392 73.5(2.894) - 81.8(3.220) 80.9(3.185)
- HB-294 HB-394 76.6(3.016) - 84.9(3.343) 84.0(3.307) AH-19 25.4(1) 489(19.3)
- HB-296 HB-396 79.8(3.142) - 88.1(3.469) 87.3(3.437)
- HB-298 HB-398 84.6(3.331) - 94.5(3.720) 93.7(3.689) AH-20 25.4(1) 527(20.7)
- HB-300 HB-400 90.9(3.579) - 100.8(3.969) 100.0(3.937)

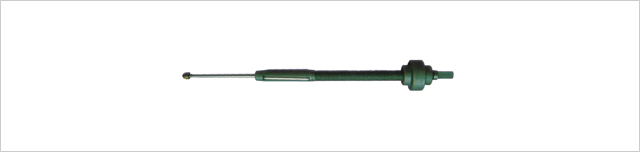

▶ Five Roller Expander

• Recommended for quick, smooth and accurate expansion for stainless steel, titanium and inconel tubes.
• Designed for tube materials that work harden quickly.
• More contact area reduces the spring back effect, especially thinner tube walls (18BWG and thinner).
• Please add the suffix "5" to the end of the part Number, when ordering
